Energy storage type mobile charging robot
Energy storage battery capacity (KWH):
184.32kWh
Host size:
2030*1050*1344.5mm
Product features:
○ With 60kWh to 200kWh large capacity lithium battery energy storage bag
○ Organic integration of charging technology, energy storage technology, intelligent driving technology
○ Realize unmanned operation and maintenance of mobile charging services and mobile energy storage services
○ It can also occupy parking spaces, realizing a new service ecology of park-level charging, energy storage and parking.
Technical parameters (national standard)
Host size:
2030×1050×1344.5mm
Charging gun:
1 (bring your own grab line 3.5 meters)
Rated input voltage DC:
480V-700.8V
Rated input voltage AC:
265V-530V
Rated output voltage:
750Vdc Max value
Maximum output current:
Max 150A
Charging interface:
Meet GB/T 20234-2015
Software configuration:
Adopt GB 2015 agreement, compatible with 2011 agreement
Communication protocol:
GB/T 27930
Communication Interface:
Wireless Communication
Protection class:
IP54
Ambient temperature:
-30℃-60℃
Rated power:
184.32kWh
Rated voltage:
614.4V
Rated capacity:
300Ah
Charging pile power:
60kW
Charging current:
150AMax
Maximum speed:
4km/h
Maximum grade:
8%
Maximum clearance height:
70mm speed bump
Ground clearance:
85mm
Ground conditions:
Cement, asphalt, etc.
built-in charging pile specifications:
60kW/750Vdc(380VAC)
Vehicle weight:
2100kg

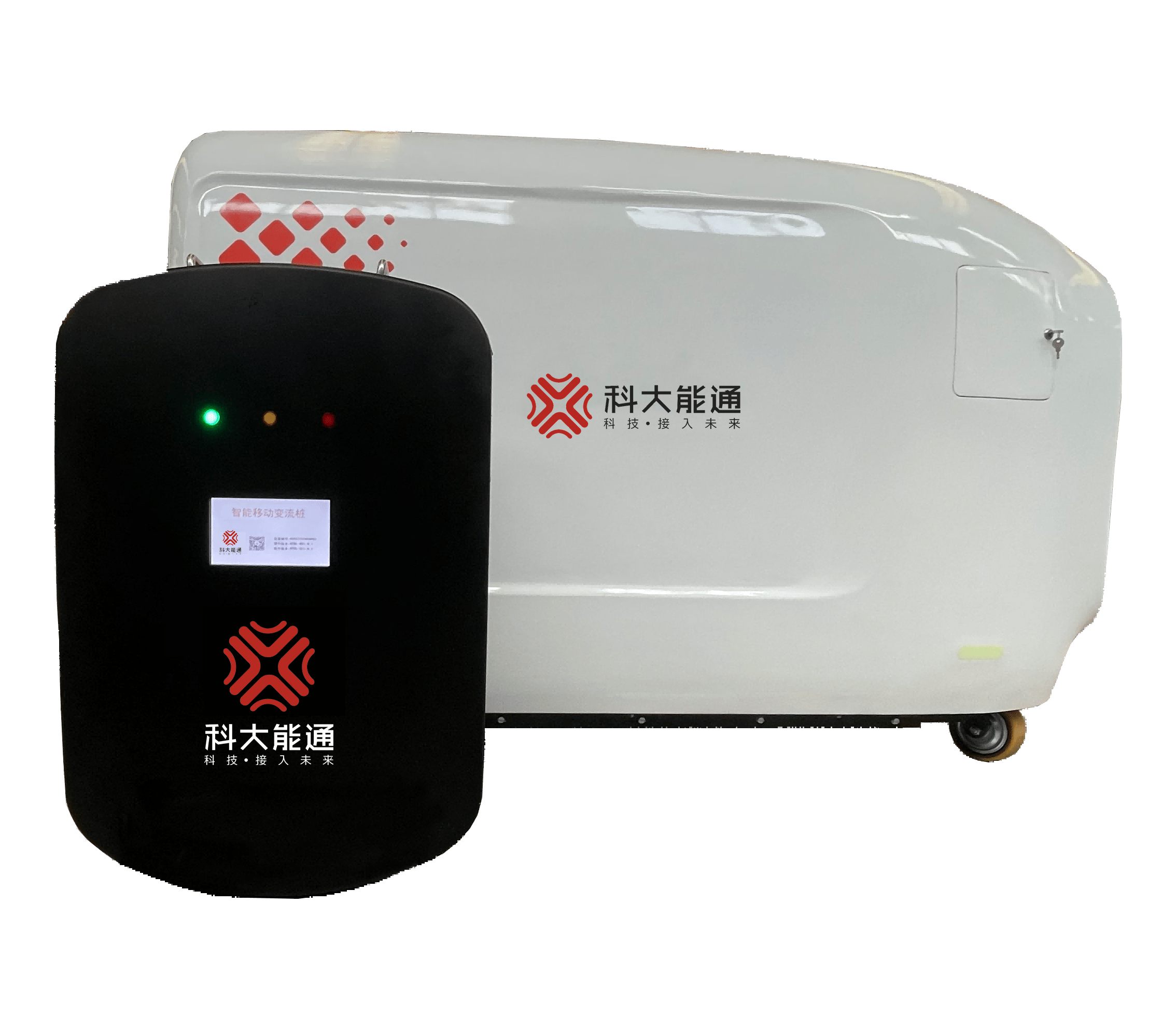

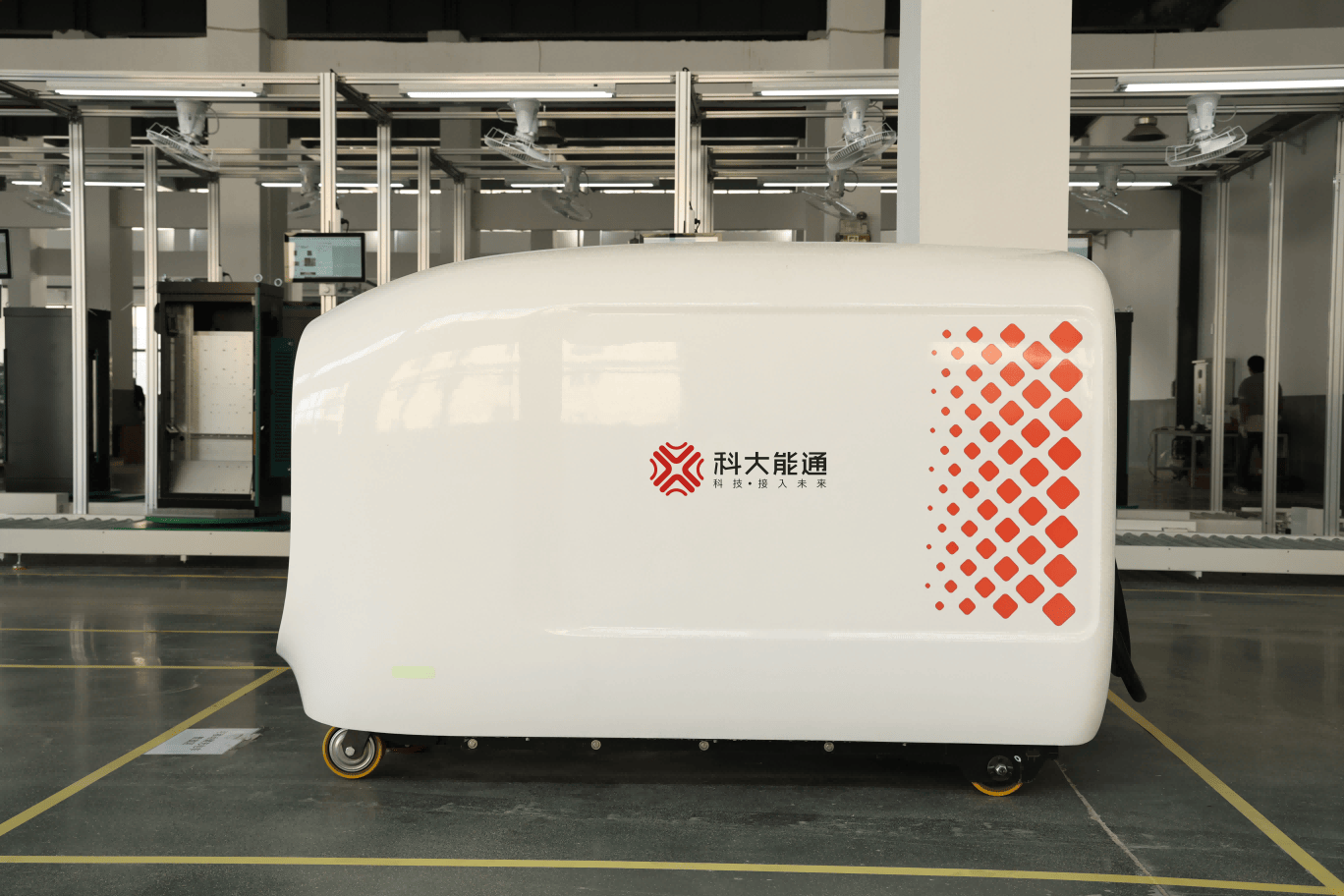

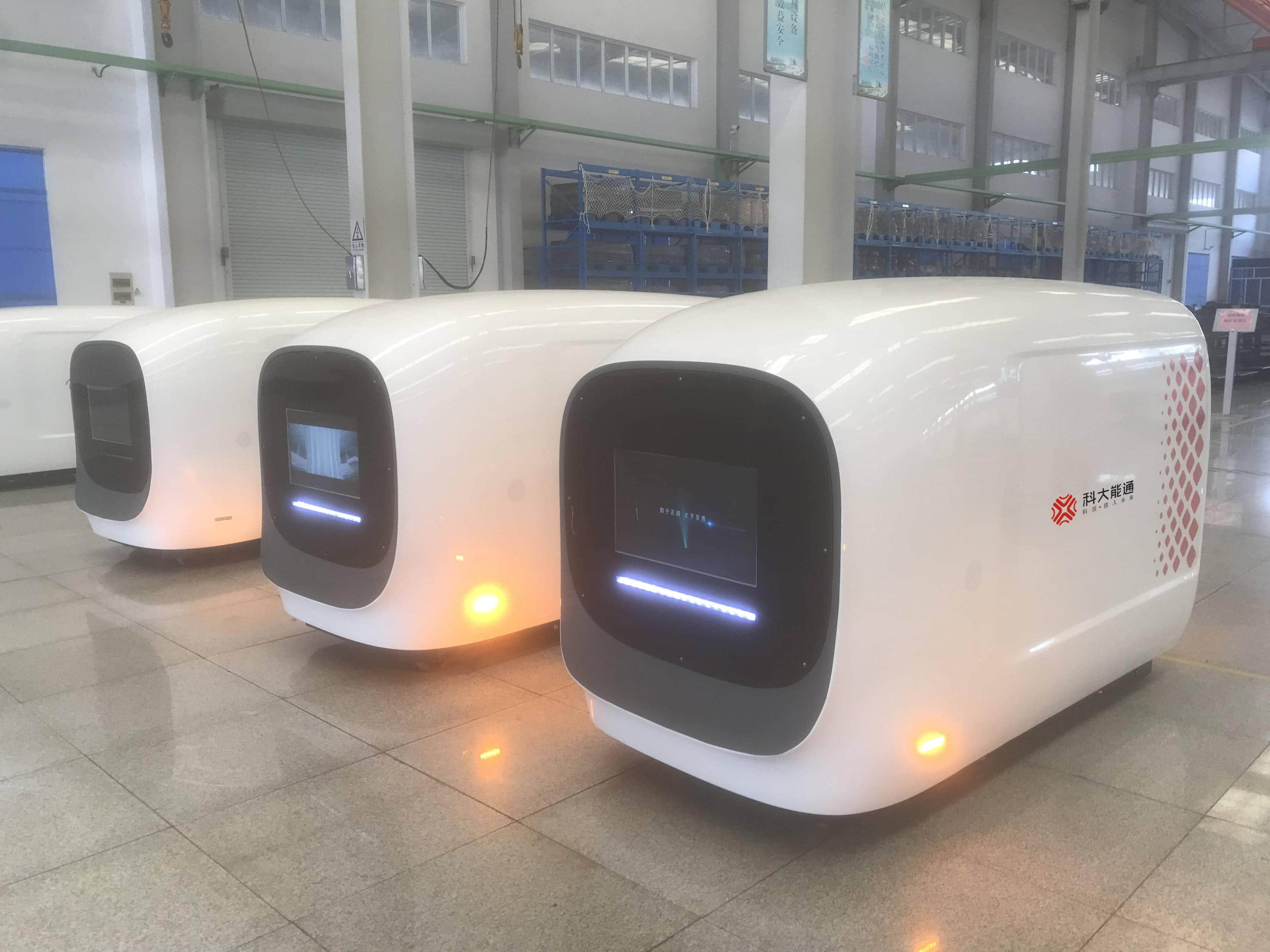

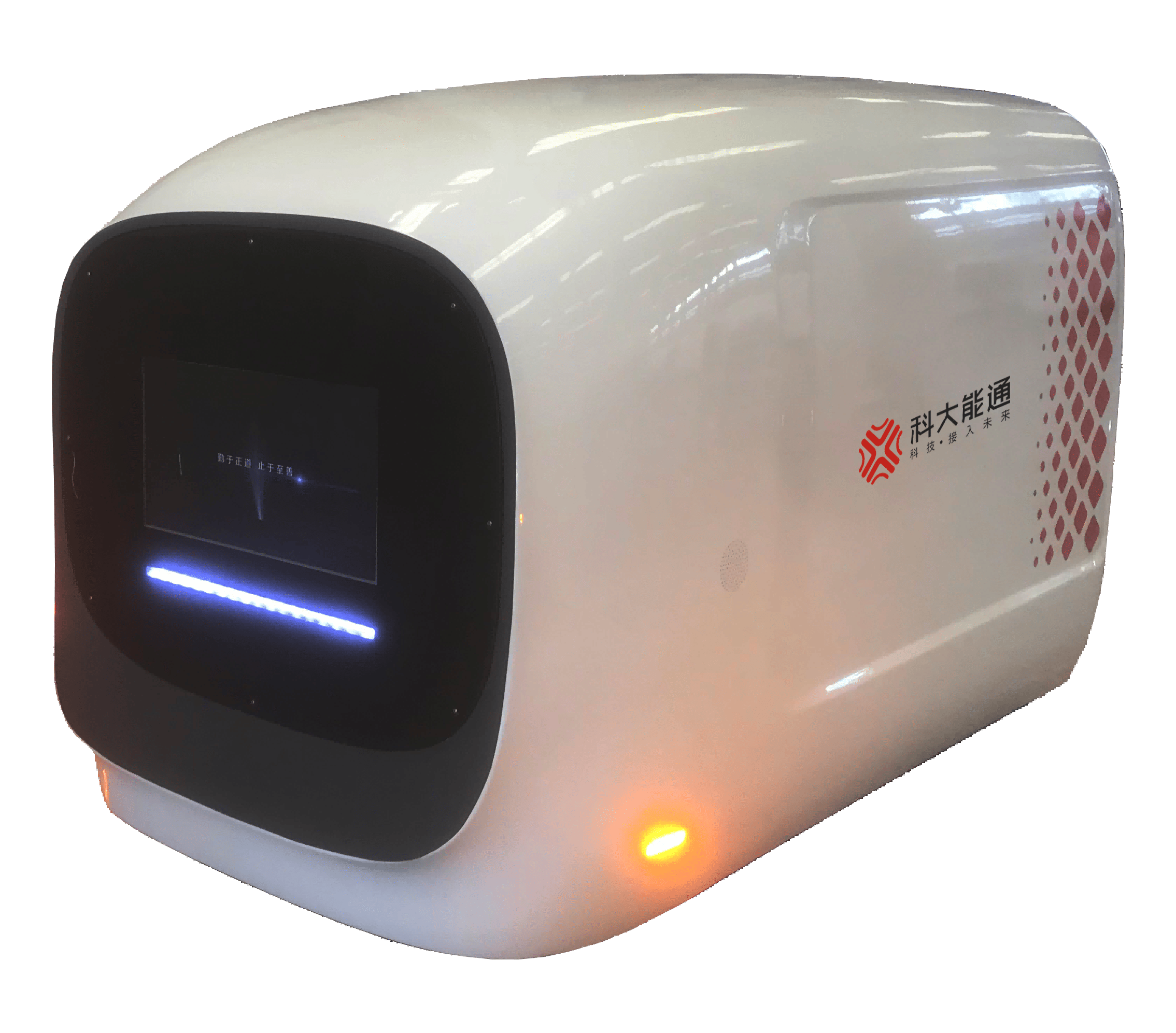

Product Details
